Tatum | Modular Splicing | Motorized Curtain Track

$268.99
Length (inch)
Power Type
Control Method
Carefully Tailored
Ready in 5–15 Business Days
Worldwide
Free Worldwide Shipping
Premium Quality
Premium Quality · Hand-Finished Details
Factory-Direct
No Middleman Markups · Factory-Direct

Checkout securely with

Afterpay American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Venmo Visa
View details
  • Description
  • Configuration
  • Shipping & Returns
 

Material: Aluminum Alloy

Size Range: 39″ – 320 1/2″ (Increments of 4″ only)

Maximum remote control distance: 98-164 ft.

Track Thickness: 1 1/4 inches

Weight Capacity: Up to 110lbs
Calculate your curtain weight

Mounting Options: Ceiling mount, wall mount
Learn if your wall can support this hardware

Cable Length: 118 inches (Standard across all Power Types)

Power Options & Outage Support:
Rechargeable: Up to 3 months per charge; operates on battery power during outages
Plug-in: Continuous power (requires active outlet; supports manual override during power loss)

Motor Side: Rotatable for Left or Right side placement

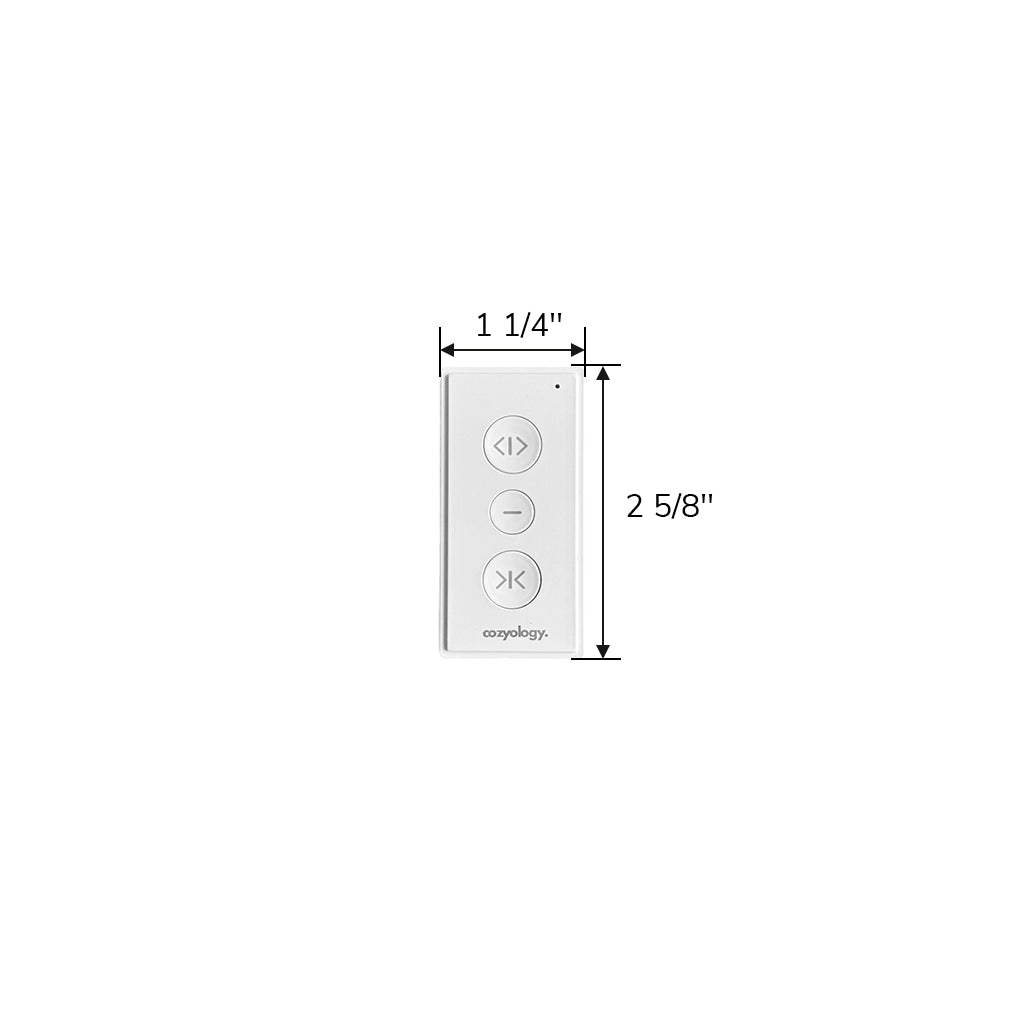

Remote Battery: CR2032

Remote Control Range: Up to 160 ft unobstructed / 30–65 ft through walls

Installation Note
For best performance, brackets should be mounted on a load-bearing wall to maximize weight support
Length (inch) Included Sections Brackets (Ceiling & Wall) Pleated Runners Ripple Fold Runners
39″–123 1/2″ 2× 39 3/8″ + 19 3/4″ + 2× 7 7/8″ + 3 7/8″ 5 Sets 45 Runners 70 Runners
39″–202 1/2″ 4× 39 3/8″ + 19 3/4″ + 2× 7 7/8″ + 3 7/8″ 7 Sets 75 Runners 105 Runners
39″–320 1/2″ 7× 39 3/8″ + 19 3/4″ + 2× 7 7/8″ + 3 7/8″ 12 Sets 120 Runners 168 Runners

Freight: From $16.9, with final cost confirmed at checkout.
Shipping Time: 5-8 business days
Shipping Carriers: UPS, FedEx, or DHL

Visit Shipping Page for more.

Individually tailored to your specifications, they are uniquely yours and cannot be returned.

Visit Returns & Refunds Policy for more.



Key Features

Modular Splicing & Custom Sizing

Custom, variable lengths with precise 4-inch increments. Seamlessly splice and adjust the track size to achieve a flawless, tailored fit for any window layout.

Touch-to-Activate & Manual Override

Simply tug the curtain 4 inches—the motor auto-activates and intelligently memorizes your window limits. Plus, the system allows for seamless manual operation during power outages.

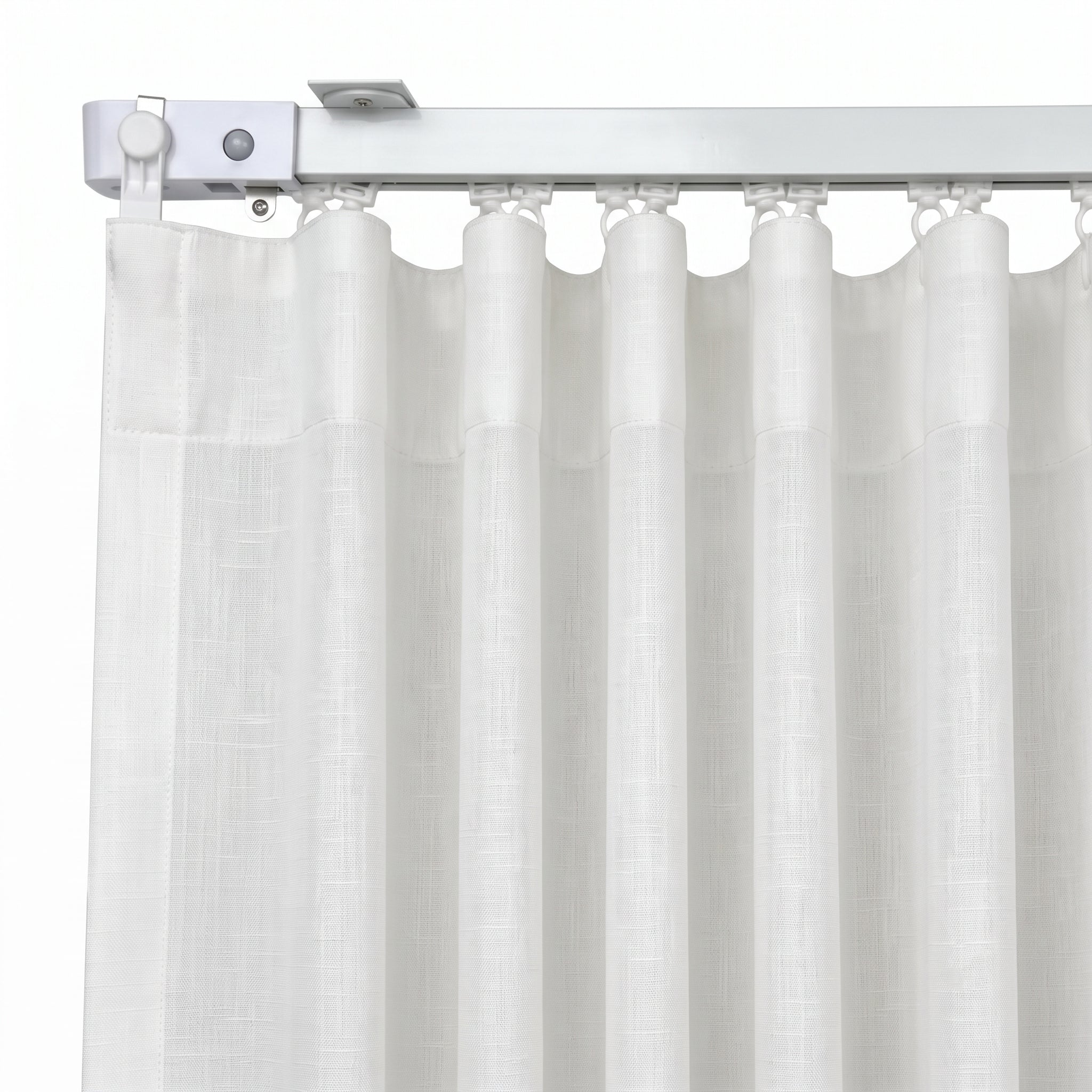

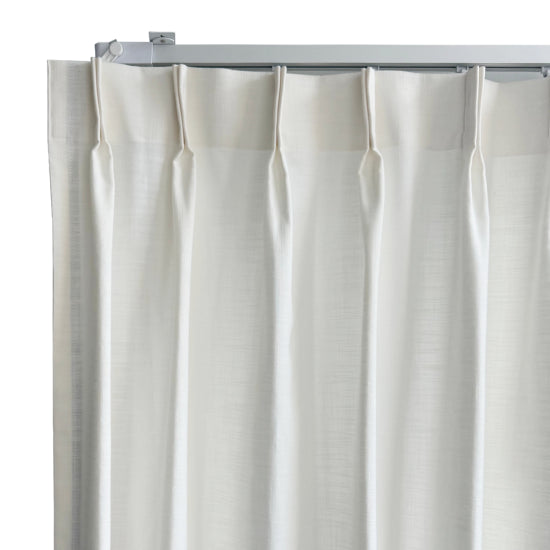

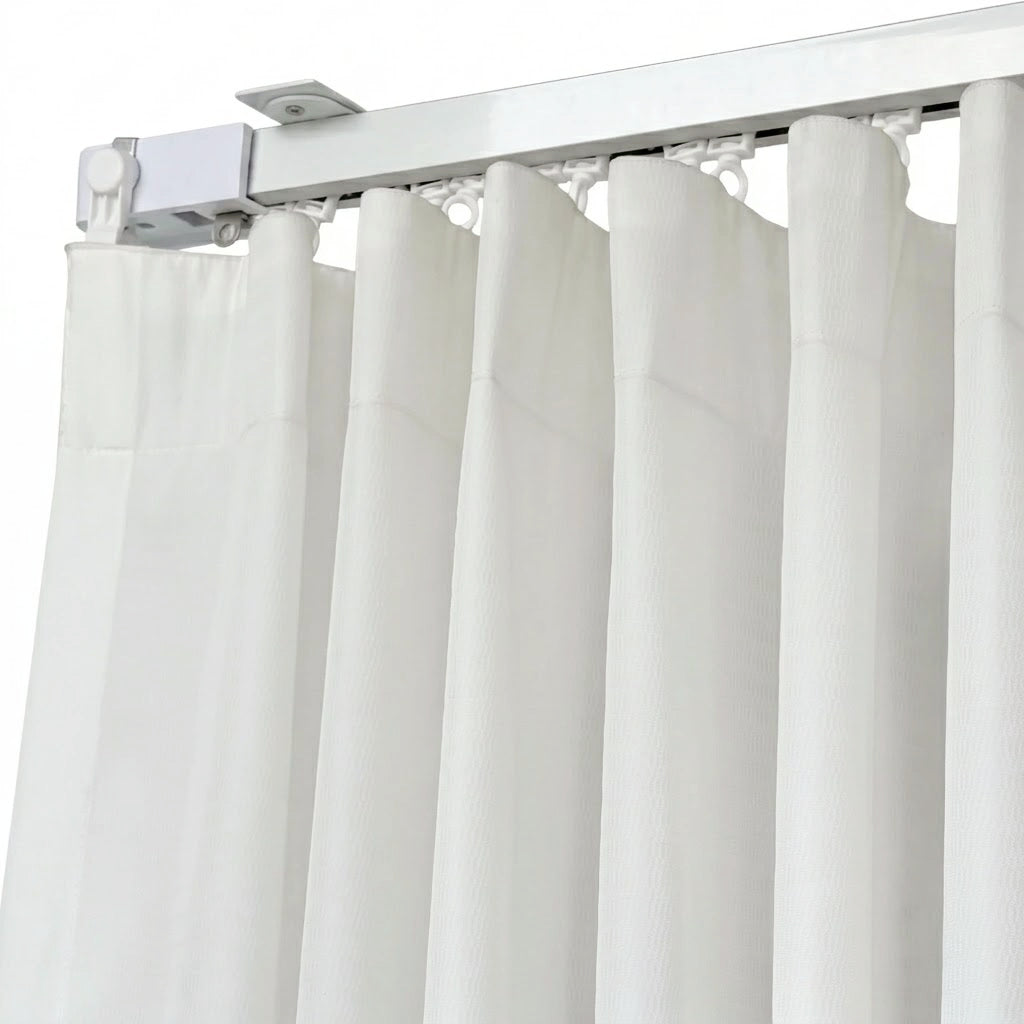

Dual-Header & Total Blackout

Versatile design that configures with both Ripple Fold and Pleated headers. Features premium overlap master carriers to bridge the center gap and eliminate light leaks.

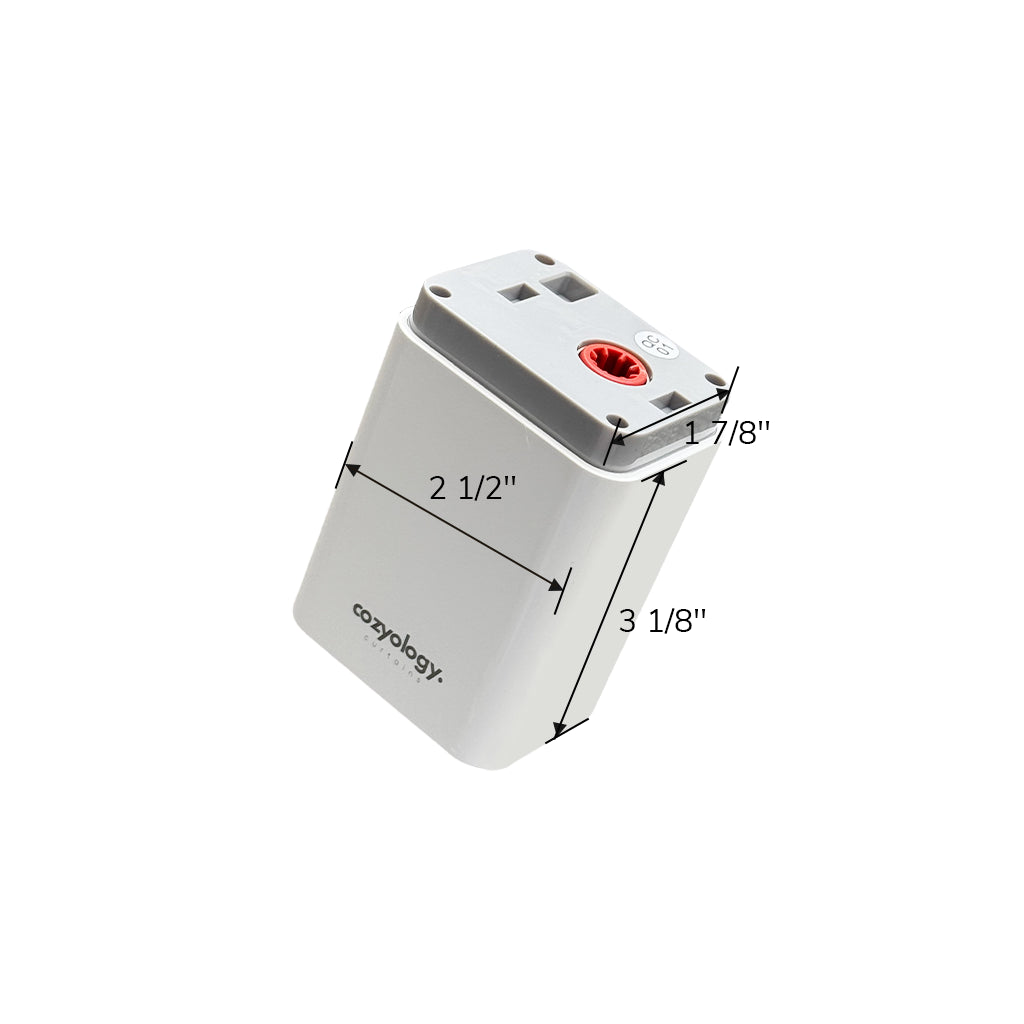

Mini Motor & Streamlined Profile

An ultra-compact mini motor upgrade designed to drastically reduce bulk. It tucks invisibly behind your drapery, ensuring technology never compromises style.

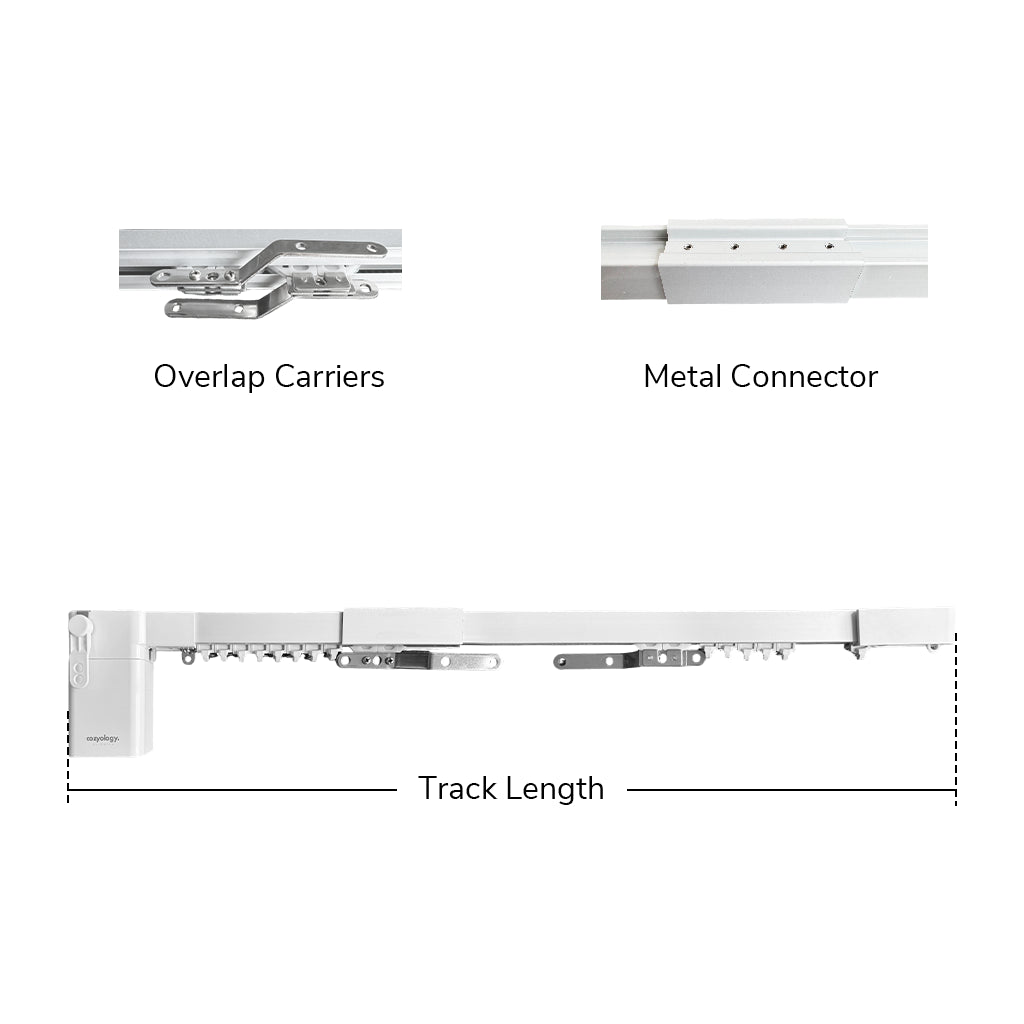

Track Length & Configuration

(Example based on the 39"–123 1/2" Kit)

Track Length: Overall required space including motors & end caps is 123 1/2".

Included Track Sections:
39 3/8" × 2 | 19 3/4" × 1 | 7 7/8" × 2 | 3 7/8" × 1

Possible Assembled Lengths: Combine the sections above to fit your space
• 118 1/8"
• 98 7/16"
• 82 11/16"
• 66 15/16"

Note: Only fixed size combinations are supported. Custom intermediate sizes (e.g., 57 1/8") cannot be created.
